Home / Beds - electrical / 5 Function Hospital bed
Ref.Number: SL1283-F

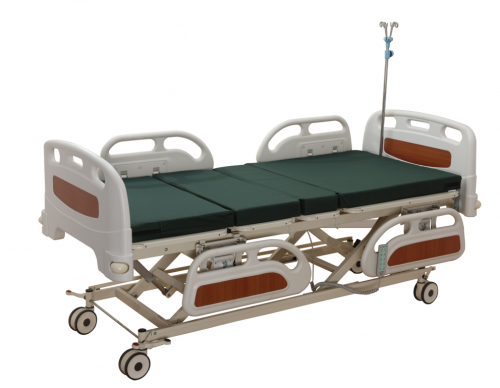

5 Function Hospital bed

Made of steel frame wiht coating surface

Back, Knee, HI/LO adjustment by motors

Trendelenburg/reverse trendelengurg to 10°

Removable head and footboards

Smooth easy clean ABS board with wall buffer

Double 5" high quality castors with central control

pp folder side rails

UL approved high quality Motor.

Specifications
Size: 2170*1060 (mm)
Weight: 110KGS
Detail

OVERALL SIZE（L*W): 2170*1060 (mm)


BED SURFACE SIZE（L*W):1960*900(mm)


ADJUSTABLE HEIGHT: 450-800 (mm)


ANGLE OF BACK: 0-70°±3


ANGLE OF THIGH SECTION:0-35°±3


ANGLE OF CALF SECTION:0-15°±3


ANGLE OF TILTING:0-10°±2


FUNCTION:5 FUNCTIONS

5 Function Hospital bed

5 Function Hospital bed
