Ref.Number: MPM-S120 Series

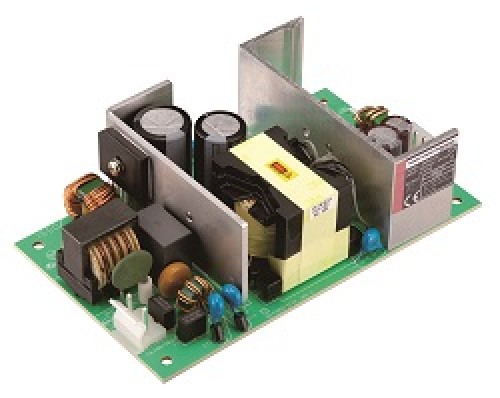

MPM-S120 - 135W 2X4 inch Medical Power supply

120W single fanless output, optional 5Vsb ON/OFF and PG /
PF function with –SB model.
Max. 135W with 13.6 CFM force air-cooling.
Designed to meet IEC 60601-1-2 4th ed. EMC.
Designed to meet medical standard EN / UL 60601-1 3.1
Edition.
Class II design, can be used for homecare equipment.
Meets EMI CISPR/FCC class B without any metal plate
shielding.
2 x MOPP
No load power consumption is less than 0.4W at input
115VAC.

Specifications

Size: 127 (L) x 76.2 (W) x 40.7 (H) mm

Other: Output: 12V/ 24V/ 48V

Detail

Featuring a 120W fanless output, it ensures quiet and reliable operation, with the option to upgrade to 135W when using 13.6 CFM forced air-cooling.

Engineered to comply with IEC 60601-1-2 4th Edition EMC and EN/UL 60601-1 3.1 Edition standards, the MPM-S120 meets strict medical safety and electromagnetic compatibility requirements. Its Class II design makes it suitable for use in homecare equipment, offering flexibility and ease of integration.

The power supply includes optional features like 5V standby ON/OFF functionality and PG/PF signal in the -SB model, enhancing system adaptability. It achieves 2x MOPP insulation, ensuring maximum patient and operator safety. Additionally, it meets EMI standards (CISPR/FCC Class B) without the need for metal plate shielding, simplifying installation.

With a no-load power consumption of less than 0.4W at 115VAC input, the MPM-S120 delivers energy efficiency while supporting environmentally conscious operations.

The MPM-S120 is the ideal choice for medical and homecare applications that demand high performance, safety, and reliability in a compact, fanless design.
