Home / Medical Power supply / MPM-S100 - 115W 2X4 inch Medical Power supply
Ref.Number: MPM-S100 Series

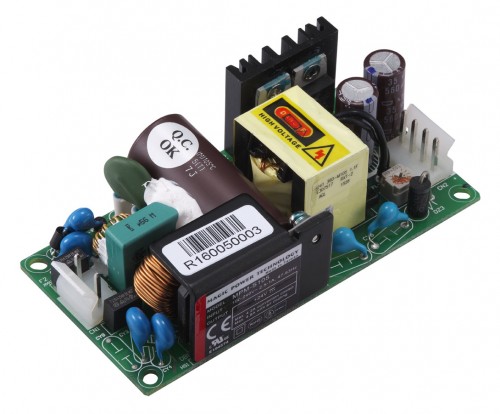

MPM-S100 - 115W 2X4 inch Medical Power supply
  1. Compact Size 2x4"
  2. 115W Air Cooling/100W Convection-Cooled @ 50°C Ambient
  3. Medical Standard IEC, EN, UL 60601- 1, Type BF Rated Patient Contact Leakage Current
  4. No-Load Power Consumption < 0.5W
  5. MOPP X 2
  6. Class II Design, Additional Class I Functional Ground Connected
Specifications
Size: 101.6 (L) x 50.8 (W) x 33.0 (H) mm
Other: Output: 12V/ 24V/ 48V
Detail

With a 2x4-inch footprint, it provides 115W with air cooling and 100W with convection cooling at ambient temperatures up to 50°C, making it an excellent choice for space-constrained environments.


Certified under medical safety standards (IEC, EN, UL 60601-1) and featuring Type BF rated patient contact leakage current, the MPM-S100 ensures high levels of safety and reliability for patient-connected devices. Its MOPP X2 insulation further enhances its safety profile, while no-load power consumption of < 0> supports energy-efficient operation.


The Class II design, with the option for an additional Class I functional ground connection, offers flexibility in various installation scenarios, ensuring adaptability to different system requirements.


The MPM-S100 Series combines compact size, energy efficiency, and advanced safety features to deliver a dependable power solution for critical medical applications.
