Home / Beds - electrical / Horizon Bed
Ref.Number: LTC550

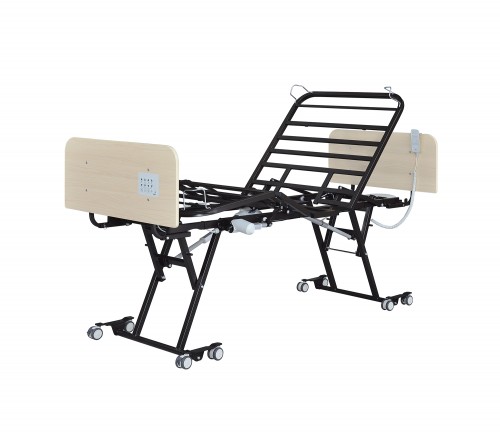

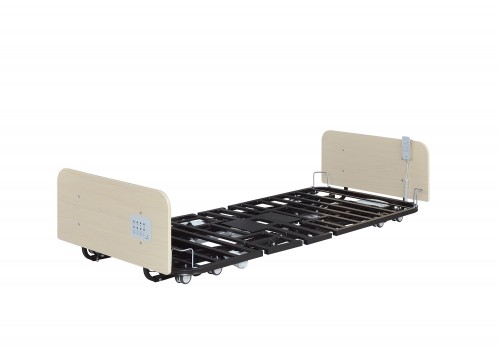

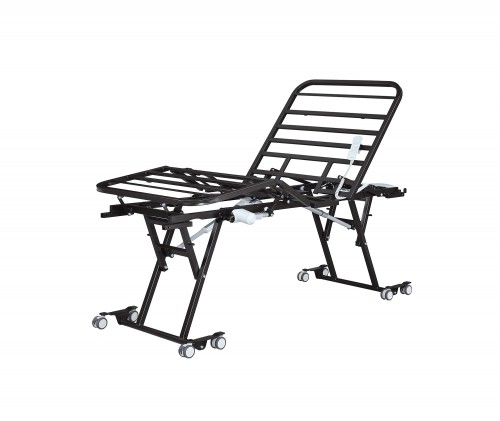

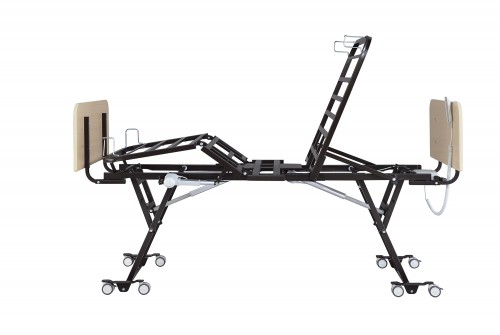

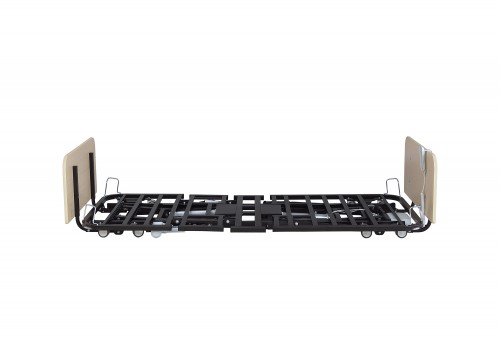

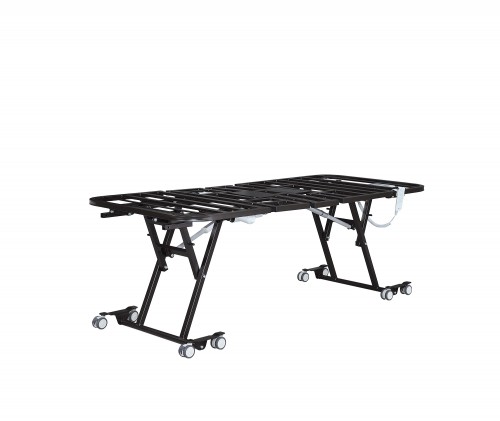

Horizon Bed

Electronic Control System (Linak)

  • KA30-8000N for Hi-Low (Dual hall feedback) 24VDC
  • KA30-6000N(8000N for 1000lbs.) back rest (No hall feedback) 24VDC
  • KA30-6000N leg rest (No hall feedback) 24VDC
  • KC33D 190 W Digital SMPS with internal charger, two control ports
  • KH21 handset (back light);
  • Mains cable - 3P pigtail type UL (Hospital-grade)
Specifications
Color: BROWN
Size: 2045*975*130mm
Weight: 180 lbs.
Detail

  • Bed weight capacity - 450 lbs.

  • Operating capacity - 450 lbs.

  • Bed weight - 180 lbs.

  • Patient Surface
    2000mm x 900mm

  •

  • Overall Length
    2200mm

  •

  • Overall Width
    920mm

  •

  • Integrated Bed Extension to 100mm and 200mm

  •

  • Powder Coated Frame.






  • Electric Hi Low

  • Electric Auto Regression
    Backrest 100mm

  • Electric Knee bend

  • Electric Forward & Reverse Trendelenberg

  • Sleep surface travel range
    110 to 725mm.

  • Max. back angle
    65 degrees to horizontal.

  • Max. knee angle
    35 degrees to horizontal.

    Forward Tilt 12 degrees.


    Reverse Tilt 12 degrees.


    65mm twin wheel locking castors.
