Ref.Number: BT-HD Series

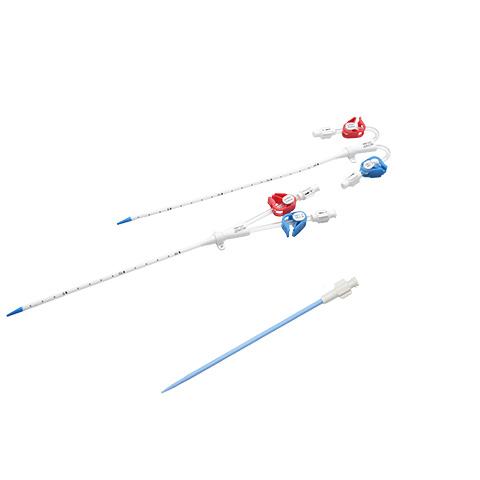

Dialysis Catheter Dual Lumen+Dilator
We will be present at MEDICA Duesseldorf (Nov. 17-20), Hall 7, Booth C26, come and see us, get your copy of FMH Buyer's Guide!
New dates for PhilMedical 2026: 2026/08/19-21, venue remains the same.
We will be present at WHX Dubai 2026 (ex Arab Health) and WHX Labs Dubai 2026 (ex MEDLAB Middle East). Contact us for more info on these two mega shows
Since 2023, Medtrade is a single event, held in Dallas. However, next edition will be held exceptionally in Phoenix on 2026/03/03-2026/03/04, contact us for more info!
KiMES Seoul will be held in Seoul on 2026-03-19 to 2026-03-22 - Contact us for more info!
OTWorld is held every two years in Leipzig, Germany. Next edition 2026-05-19 to 2026-05-22 don't miss the world's biggest orthopedics congress!
Soft tip reduces the risk of vascular trauma.
High flow rates up to 300 cc/min at low venous pressure.
Optimal positioning of arterial and venous side holes to avoid recirculation.
Radiopaque catheter ensures the correct placement of the catheter tip.
All parts of the catheter are made of the medical TPUs except for clamps and suture wings.
The luers and the Y hub are made firmly by insert molding to ensure there is no risk of the blood leakage.
Anti-slip clamps designed to help clamping the extension tubes easily and correctly.
Smooth inner catheter channels to reduce the formation of the turbulence of the blood flow.
Single catheter x1, Single Dilator x1 supplied sterile in tray or sterile pouch.
| Code | No. of Lumen | Size（Fr） | Length（cm） | Extension Tube |
BT-HD-CS2111-1113-D | 2 | 11 | 13 | Straight |
BT-HD-CS2111-1114-D | 2 | 11 | 14 | Straight |
BT-HD-CS2111-1115-D | 2 | 11 | 15 | Straight |
BT-HD-CS2111-1116-D | 2 | 11 | 16 | Straight |
BT-HD-CS2111-1117-D | 2 | 11 | 17 | Straight |
BT-HD-CS2111-1118-D | 2 | 11 | 18 | Straight |
BT-HD-CS2111-1119-D | 2 | 11 | 19 | Straight |
BT-HD-CS2111-1120-D | 2 | 11 | 20 | Straight |
BT-HD-CS2111-1121-D | 2 | 11 | 21 | Straight |
BT-HD-CS2111-1122-D | 2 | 11 | 22 | Straight |
BT-HD-CS2111-1123-D | 2 | 11 | 23 | Straight |
BT-HD-CS2111-1124-D | 2 | 11 | 24 | Straight |
BT-HD-CS2111-1125-D | 2 | 11 | 25 | Straight |
BT-HD-CS2211-1113-D | 2 | 11 | 13 | Curved |
BT-HD-CS2211-1114-D | 2 | 11 | 14 | Curved |
BT-HD-CS2211-1115-D | 2 | 11 | 15 | Curved |
BT-HD-CS2211-1116-D | 2 | 11 | 16 | Curved |
BT-HD-CS2211-1117-D | 2 | 11 | 17 | Curved |
BT-HD-CS2211-1118-D | 2 | 11 | 18 | Curved |
BT-HD-CS2211-1119-D | 2 | 11 | 19 | Curved |
BT-HD-CS2211-1120-D | 2 | 11 | 20 | Curved |
BT-HD-CS2211-1121-D | 2 | 11 | 21 | Curved |
BT-HD-CS2211-1122-D | 2 | 11 | 22 | Curved |
BT-HD-CS2211-1123-D | 2 | 11 | 23 | Curved |
BT-HD-CS2211-1124-D | 2 | 11 | 24 | Curved |
BT-HD-CS2211-1125-D | 2 | 11 | 25 | Curved |
BT-HD-CS2111-1213-D | 2 | 12 | 13 | Straight |
BT-HD-CS2111-1214-D | 2 | 12 | 14 | Straight |
BT-HD-CS2111-1215-D | 2 | 12 | 15 | Straight |
BT-HD-CS2111-1216-D | 2 | 12 | 16 | Straight |
BT-HD-CS2111-1217-D | 2 | 12 | 17 | Straight |
BT-HD-CS2111-1218-D | 2 | 12 | 18 | Straight |
BT-HD-CS2111-1219-D | 2 | 12 | 19 | Straight |
BT-HD-CS2111-1220-D | 2 | 12 | 20 | Straight |
BT-HD-CS2111-1221-D | 2 | 12 | 21 | Straight |
BT-HD-CS2111-1222-D | 2 | 12 | 22 | Straight |
BT-HD-CS2111-1223-D | 2 | 12 | 23 | Straight |
BT-HD-CS2111-1224-D | 2 | 12 | 24 | Straight |
BT-HD-CS2111-1225-D | 2 | 12 | 25 | Straight |
BT-HD-CS2211-1213-D | 2 | 12 | 13 | Curved |
BT-HD-CS2211-1214-D | 2 | 12 | 14 | Curved |
BT-HD-CS2211-1215-D | 2 | 12 | 15 | Curved |
BT-HD-CS2211-1216-D | 2 | 12 | 16 | Curved |
BT-HD-CS2211-1217-D | 2 | 12 | 17 | Curved |
BT-HD-CS2211-1218-D | 2 | 12 | 18 | Curved |
BT-HD-CS2211-1219-D | 2 | 12 | 19 | Curved |
BT-HD-CS2211-1220-D | 2 | 12 | 20 | Curved |
BT-HD-CS2211-1221-D | 2 | 12 | 21 | Curved |
BT-HD-CS2211-1222-D | 2 | 12 | 22 | Curved |
BT-HD-CS2211-1223-D | 2 | 12 | 23 | Curved |
BT-HD-CS2211-1224-D | 2 | 12 | 24 | Curved |
BT-HD-CS2211-1225-D | 2 | 12 | 25 | Curved |
