Ref.Number: BT-BC-R4 Series

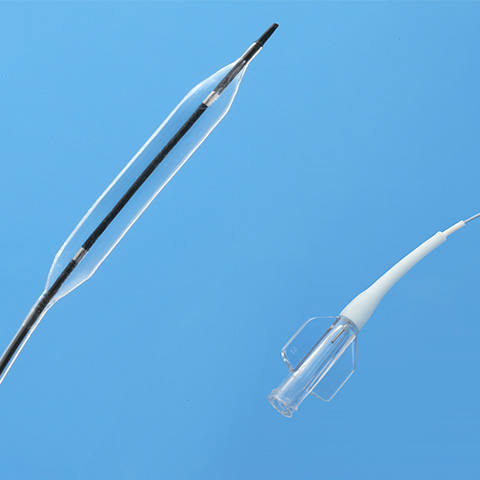

PTCA Balloon Dilatation Catheter-Rapid Exchange
We will be present at MEDICA Duesseldorf (Nov. 17-20), Hall 7, Booth C26, come and see us, get your copy of FMH Buyer's Guide!
New dates for PhilMedical 2026: 2026/08/19-21, venue remains the same.
We will be present at WHX Dubai 2026 (ex Arab Health) and WHX Labs Dubai 2026 (ex MEDLAB Middle East). Contact us for more info on these two mega shows
Since 2023, Medtrade is a single event, held in Dallas. However, next edition will be held exceptionally in Phoenix on 2026/03/03-2026/03/04, contact us for more info!
KiMES Seoul will be held in Seoul on 2026-03-19 to 2026-03-22 - Contact us for more info!
OTWorld is held every two years in Leipzig, Germany. Next edition 2026-05-19 to 2026-05-22 don't miss the world's biggest orthopedics congress!
Bioteque's Rapid Exchange (Mono-rail) balloon meet the challenge to reach a equilibrium between various performance characteristics – pushability, trackability, torqueability, kink performance in order to provide clinical versatility in coronary artery use.
Semi-compliance nylon material balloon material exhibit relatively high tensile strength, controlled compliance.
Typical triple balloon refolding characteristics.
Marks on the proximal portion of the catheter shaft at 90cm and 100cm from the distal tip are for physician reference.
Hub configuration:Enhanded strain relief design prevent kinking, transparent hub facilitates easy air bubble detection.
Reinforced mid shaft design provides flexibility and additional support enhance overall pushibility to lead physician to the target lesion.
Guidewire compatibility:0.014”.
Specially designed radiopaque tapered tip for advanced crossability and provide x-ray visibility of the catheter, the flexible tip is closely meshed with the guide wire, fish-mouth Phenomenon is minimized.
| Product Code | Balloon Diameter (mm) | Balloon Length (mm) | Catheter Length (cm) | Recommended Guidewire Size (inch) | Nominal Pressure (atm) | Rated Burst Pressure (atm) | Guiding Catheter Size (Fr) |
| BT-BC-R4-2-10-135 | 2.00 | 10 | 135 | 0.014 | 7 | 16 | 5 |
| BT-BC-R4-2-15-135 | 2.00 | 15 | 135 | 0.014 | 7 | 16 | 5 |
| BT-BC-R4-2-20-135 | 2.00 | 20 | 135 | 0.014 | 7 | 16 | 5 |
| BT-BC-R4-225-10-135 | 2.25 | 10 | 135 | 0.014 | 7 | 16 | 5 |
| BT-BC-R4-225-15-135 | 2.25 | 15 | 135 | 0.014 | 7 | 16 | 5 |
| BT-BC-R4-225-20-135 | 2.25 | 20 | 135 | 0.014 | 7 | 16 | 5 |
| BT-BC-R4-25-10-135 | 2.50 | 10 | 135 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-25-15-135 | 2.50 | 15 | 135 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-25-20-135 | 2.50 | 20 | 135 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-275-10-135 | 2.75 | 10 | 135 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-275-15-135 | 2.75 | 15 | 135 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-275-20-135 | 2.75 | 20 | 135 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-3-10-135 | 3.00 | 10 | 135 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-3-15-135 | 3.00 | 15 | 135 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-3-20-135 | 3.00 | 20 | 135 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-2-10-145 | 2.00 | 10 | 145 | 0.014 | 7 | 16 | 5 |
| BT-BC-R4-2-15-145 | 2.00 | 15 | 145 | 0.014 | 7 | 16 | 5 |
| BT-BC-R4-2-20-145 | 2.00 | 20 | 145 | 0.014 | 7 | 16 | 5 |
| BT-BC-R4-225-10-145 | 2.25 | 10 | 145 | 0.014 | 7 | 16 | 5 |
| BT-BC-R4-225-15-145 | 2.25 | 15 | 145 | 0.014 | 7 | 16 | 5 |
| BT-BC-R4-225-20-145 | 2.25 | 20 | 145 | 0.014 | 7 | 16 | 5 |
| BT-BC-R4-25-10-145 | 2.50 | 10 | 145 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-25-15-145 | 2.50 | 15 | 145 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-25-20-145 | 2.50 | 20 | 145 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-275-10-145 | 2.75 | 10 | 145 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-275-15-145 | 2.75 | 15 | 145 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-275-20-145 | 2.75 | 20 | 145 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-3-10-145 | 3.00 | 10 | 145 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-3-15-145 | 3.00 | 15 | 145 | 0.014 | 5 | 16 | 5 |
| BT-BC-R4-3-20-145 | 3.00 | 20 | 145 | 0.014 | 5 | 16 | 5 |
