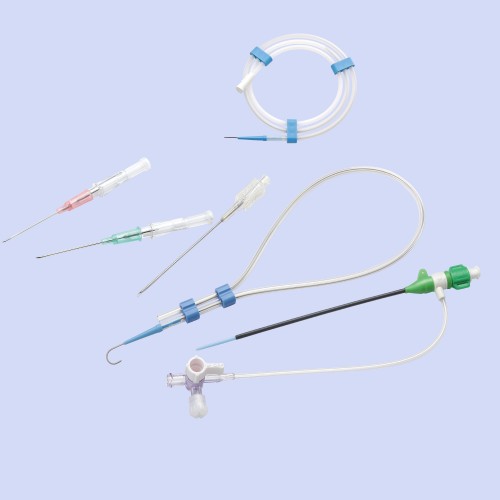

Bioteque's Sheath Introducer Kit offers a wide variety of sets and sheaths in adult and pediatric sizes.
Provides smooth transition between sheath and dilator, material includes: ETFE, PP.
Maximum flexibility without kinking or compression.
Taper tip design to reduce potential tissue trauma.
Lubricious sheath and dilator.
Different configurations and combinations are offered to meet your access needs.
| A Kit contains sheath and dilator | ||||||||||||
| Inner diameter | *Guidewire compatibility | *Sheath length | ||||||||||
| 11 cm | 23 cm | |||||||||||
| 4Fr | 0.035" | BT-SI-1-04N110-35000-00 | BT-SI-1-04N230-35000-00 | |||||||||
| 5Fr | 0.038" | BT-SI-1-05N110-38000-00 | BT-SI-1-05N230-38000-00 | |||||||||
| 6Fr | 0.038" | BT-SI-1-06N110-38000-00 | BT-SI-1-06N230-38000-00 | |||||||||
| 7Fr | 0.038" | BT-SI-1-07N110-38000-00 | BT-SI-1-07N230-38000-00 | |||||||||
| 8Fr | 0.038" | BT-SI-2-08N110-38000-00 | / | |||||||||
| 9Fr | 0.038" | BT-SI-2-09N110-38000-00 | / | |||||||||
| B Kit contains sheath, dilator and *guidewire | ||||||||||||
| Inner diameter | *Guidewire compatibility | *Sheath length | ||||||||||
| 11 cm | 23 cm | |||||||||||
| 4Fr | 0.025" | BT-SI-1-044110-25045-00 | BT-SI-1-044230-25080-00 | |||||||||
| 5Fr | 0.035" | BT-SI-1-054110-35045-00 | BT-SI-1-054230-35080-00 | |||||||||
| 6Fr | 0.035" | BT-SI-1-064110-35045-00 | BT-SI-1-064230-35080-00 | |||||||||
| 7Fr | 0.035" | BT-SI-1-074110-35045-00 | BT-SI-1-074230-35080-00 | |||||||||
| 8Fr | 0.035" | BT-SI-2-084110-35045-00 | / | |||||||||
| 9Fr | 0.035" | BT-SI-2-094110-35045-00 | / | |||||||||
| C Kit contains sheath, dilator, *guidewire and *entry needle | ||||||||||||
| Inner diameter | *Guidewire compatibility | *Sheath length | ||||||||||
| 11 cm | 23 cm | |||||||||||
| 4Fr | 0.025" | BT-SI-1-044110-25045-13 | BT-SI-1-044230-25080-13 | |||||||||
| 5Fr | 0.035" | BT-SI-1-054110-35045-11 | BT-SI-1-054230-35080-11 | |||||||||
| 6Fr | 0.035" | BT-SI-1-064110-35045-11 | BT-SI-1-064230-35080-11 | |||||||||
| 7Fr | 0.035" | BT-SI-1-074110-35045-11 | BT-SI-1-074230-35080-11 | |||||||||
| 8Fr | 0.035" | BT-SI-2-084110-35045-11 | / | |||||||||
| 9Fr | 0.035" | BT-SI-2-094110-35045-11 | / | |||||||||
| D Kit contains sheath, dilator, *guidewire, *entry needle and syringe | ||||||||||||
| Inner diameter | *Guidewire compatibility | *Sheath length | ||||||||||
| 11 cm | 23 cm | |||||||||||
| 4Fr | 0.025" | BT-SI-1-044110-25045-33 | BT-SI-1-044230-25080-33 | |||||||||
| 5Fr | 0.035" | BT-SI-1-054110-35045-31 | BT-SI-1-054230-35080-31 | |||||||||
| 6Fr | 0.035" | BT-SI-1-064110-35045-31 | BT-SI-1-064230-35080-31 | |||||||||
| 7Fr | 0.035" | BT-SI-1-074110-35045-31 | BT-SI-1-074230-35080-31 | |||||||||
| 8Fr | 0.035" | BT-SI-2-084110-35045-31 | / | |||||||||
| 9Fr | 0.035" | BT-SI-2-094110-35045-31 | / | |||||||||
| E Kit contains sheath, dilator, *guidewire, *entry needle, syringe and scalpel | ||||||||||||
| Inner diameter | *Guidewire compatibility | *Sheath length | ||||||||||
| 11 cm | 23 cm | |||||||||||
| 4Fr | 0.025" | BT-SI-1-044110-25045-53 | BT-SI-1-044230-25080-53 | |||||||||
| 5Fr | 0.035" | BT-SI-1-054110-35045-51 | BT-SI-1-054230-35080-51 | |||||||||
| 6Fr | 0.035" | BT-SI-1-064110-35045-51 | BT-SI-1-064230-35080-51 | |||||||||
| 7Fr | 0.035" | BT-SI-1-074110-35045-51 | BT-SI-1-074230-35080-51 | |||||||||
| 8Fr | 0.035" | BT-SI-2-084110-35045-51 | / | |||||||||
| 9Fr | 0.035" | BT-SI-2-094110-35045-51 | / | |||||||||
*Guidewire compatibility:
| 0.018", 0.021" , 0.025", 0.035" for 4Fr~6Fr; | |||||||||||
| 0.025", 0.035", 0.038" for 5Fr~7Fr; | ||||||||||||
| 0.035", 0.038" for 8Fr~9Fr; | ||||||||||||
| *Sheath length: | 5cm, 7cm ,10cm, 11cm, 16cm, 23cm, 25cm for 4Fr~7Fr; | |||||||||||
| 5cm, 7cm ,10cm, 11cm for 8Fr~9Fr; | ||||||||||||
| *Guidewire: | Stainless steel guidewire or Hydrophilic coated guidewire | |||||||||||
| *Entry needle: | Puncture needle or IV Catheter | |||||||||||
