Ref.Number: BT-BC-D5 Series

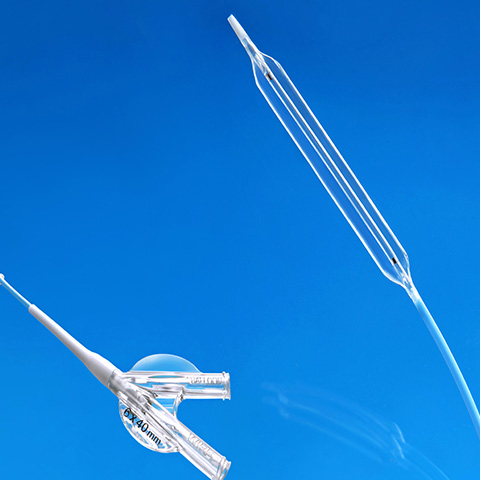

PTA Balloon Dilatation Catheter – Over the Wire dual Lumen
We will be present at WHX Miami (ex FIME), booth X20, June 17 to 19. WHX Miami is the largest US & Latin America medical trade fair.
WHX Labs Dubai (ex MEDLAB), the show dates have been aligned with WHX Dubai (ex Arab Health), new dates are 2027/01/25-28
New dates for PhilMedical 2026: 2026/08/19-21, venue remains the same.
Low compliant balloon with material reinforced Nylon provides powerful penetration to obstructive lesions.
The inflated balloon provides excellent abrasion resistance when compressing the arteriosclerotic plaque.
Premium penta fold technology facilitates smooth entry, crossing and withdrawal.
Improved retrieving profile expedites easier crossing through tight stenosis and occlusions.
A refolder is provided to remodel a deflated balloon back to its original collapsed configuration over several balloon dilatation process.
Guidewire compatibility:0.035”.
Specially designed radiopaque tapered tip for advanced crossability and provide x-ray visibility of the catheter, the flexible tip is closely meshed with the guide wire, fish-mouth Phenomenon is minimized.
Product Code | Balloon Diameter(mm) | Balloon Length(mm) | Catheter Length (cm) | Recommended Guidewire Size(Inch) | Nominal Pressure (ATM)
| Rated Burst Pressure (ATM) | Recommended Introducer Sheath Size (Fr) |
BT-BC-D5-4-40-75 | 4 | 40 | 75 | 0.035 | 6 | 21 | 6 |
BT-BC-D5-4-60-75 | 4 | 60 | 75 | 0.035 | 6 | 21 | 6 |
BT-BC-D5-4-80-75 | 4 | 80 | 75 | 0.035 | 6 | 21 | 6 |
BT-BC-D5-5-40-75 | 5 | 40 | 75 | 0.035 | 5 | 18 | 6 |
BT-BC-D5-5-60-75 | 5 | 60 | 75 | 0.035 | 5 | 18 | 6 |
BT-BC-D5-5-80-75 | 5 | 80 | 75 | 0.035 | 5 | 18 | 6 |
BT-BC-D5-6-40-75 | 6 | 40 | 75 | 0.035 | 6 | 23 | 6 |
BT-BC-D5-6-60-75 | 6 | 60 | 75 | 0.035 | 8 | 19 | 6 |
BT-BC-D5-6-80-75 | 6 | 80 | 75 | 0.035 | 8 | 19 | 6 |
BT-BC-D5-7-40-75 | 7 | 40 | 75 | 0.035 | 11 | 18 | 6 |
BT-BC-D5-7-60-75 | 7 | 60 | 75 | 0.035 | 10 | 17 | 6 |
BT-BC-D5-7-80-75 | 7 | 80 | 75 | 0.035 | 10 | 17 | 6 |
BT-BC-D5-8-40-75 | 8 | 40 | 75 | 0.035 | 4 | 15 | 6 |
BT-BC-D5-8-60-75 | 8 | 60 | 75 | 0.035 | 3 | 13 | 6 |
BT-BC-D5-8-80-75 | 8 | 80 | 75 | 0.035 | 3 | 13 | 6 |
BT-BC-D5-10-40-75 | 10 | 40 | 75 | 0.035 | 6 | 9 | 7 |
BT-BC-D5-4-40-120 | 4 | 40 | 120 | 0.035 | 6 | 21 | 6 |
BT-BC-D5-4-60-120 | 4 | 60 | 120 | 0.035 | 6 | 21 | 6 |
BT-BC-D5-4-80-120 | 4 | 80 | 120 | 0.035 | 6 | 21 | 6 |
BT-BC-D5-5-40-120 | 5 | 40 | 120 | 0.035 | 5 | 18 | 6 |
BT-BC-D5-5-60-120 | 5 | 60 | 120 | 0.035 | 5 | 18 | 6 |
BT-BC-D5-5-80-120 | 5 | 80 | 120 | 0.035 | 5 | 18 | 6 |
BT-BC-D5-6-40-120 | 6 | 40 | 120 | 0.035 | 6 | 21 | 6 |
BT-BC-D5-6-60-120 | 6 | 60 | 120 | 0.035 | 8 | 19 | 6 |
BT-BC-D5-6-80-120 | 6 | 80 | 120 | 0.035 | 8 | 19 | 6 |
BT-BC-D5-7-40-120 | 7 | 40 | 120 | 0.035 | 11 | 18 | 6 |
BT-BC-D5-7-60-120 | 7 | 60 | 120 | 0.035 | 10 | 17 | 6 |
BT-BC-D5-7-80-120 | 7 | 80 | 120 | 0.035 | 10 | 17 | 6 |
BT-BC-D5-8-40-120 | 8 | 40 | 120 | 0.035 | 4 | 15 | 6 |
BT-BC-D5-8-60-120 | 8 | 60 | 120 | 0.035 | 3 | 13 | 6 |
BT-BC-D5-8-80-120 | 8 | 80 | 120 | 0.035 | 3 | 13 | 6 |
BT-BC-D5-10-40-120 | 10 | 40 | 120 | 0.035 | 6 | 9 | 7 |
