Ref.Number: OA-01

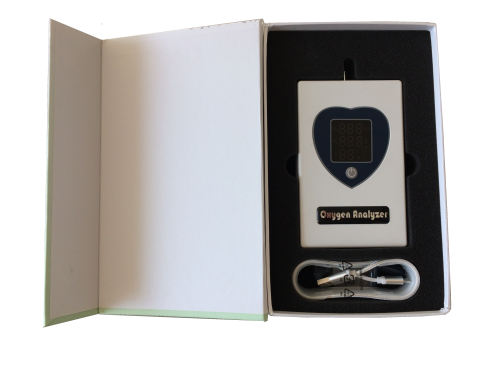

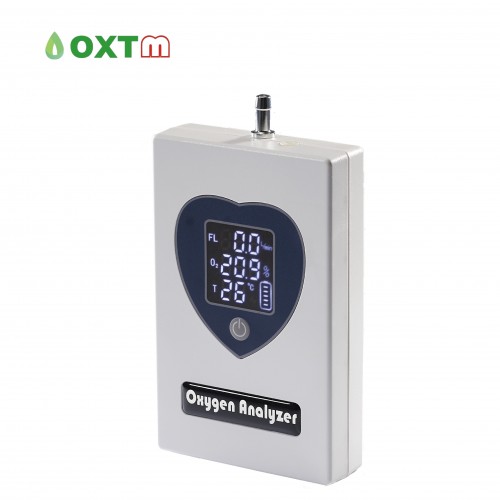

Oxygen Analyzer
We will be present at WHX Dubai 2026 (ex Arab Health) and WHX Labs Dubai 2026 (ex MEDLAB Middle East). Contact us for more info on these two mega shows
Since 2023, Medtrade is a single event, held in Dallas. However, next edition will be held exceptionally in Phoenix on 2026/03/03-2026/03/04, contact us for more info!
KiMES Seoul will be held in Seoul on 2026-03-19 to 2026-03-22 - Contact us for more info!
OTWorld is held every two years in Leipzig, Germany. Next edition 2026-05-19 to 2026-05-22 don't miss the world's biggest orthopedics congress!
Power: 8 - 15VDC / 12mA Dimensions / Weights: 142mm X 89mm X 28mm / 198g Flow Measurement Range : 0 - 10.0LPM Can Be Customized According To User Requirements 0 - 20.0LPM, Direct Measurement Bypass Flow Measurement Resolution: ±0.01LPM Flow Measurement Accuracy: ±0.2LPM Or Of Reading 4% (Whichever Is Greater) Max. Measurement Pressure: 150 Kpa Operation Ambient: 0 ~ 40℃/≤90%RH Storage Ambient: -20℃ ~ 85℃/≤90%RH Oxygenconcentration Measurement Range: 20% ~ 96% Oxygenconcentration Measurement Accuracy: ±1.8% Response: 0.5s
