Home / Ultrasonic Therapy / Ultrasound Therapy Unit
Ref.Number: KUP-2000

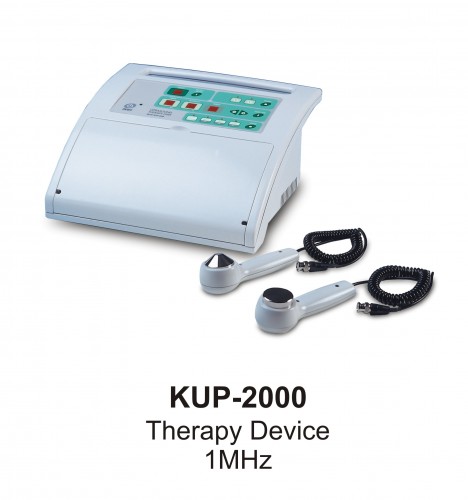

Ultrasound Therapy Unit
Detail
The Ultrasound Therapy Unit KUP-2000 produces 1 million times micro-vibration which causes the tissues to compress and expand at the same frequency as the ultrasound. This effect called micro massage which stimulates the tissues and improve the metabolism of cell membranes. Also, it leads to the generation of frictional heat. The mechanical and thermal effects help to promote blood circulation and muscle relaxation during the treatment process, thus reducing pain.

Specifications:
Frequency: 1MHz
Power output: 0.2~2W/cm2 (10 steps display 10~99%)
Output Wave mode: Continuous Wave, Pulse wave
Preset program: 10 preset mode, 10 user mode
Ultrasonic probe area: Large 8.5cm2 SUS
Small 0.8cm2 SUS
Dimension: 32L x 30W x 14.5H cm
Weight: approx. 3kgs
