Home / Hospital Related / Medical Grade Isolation LAN card
Ref.Number: MEDN‐51040

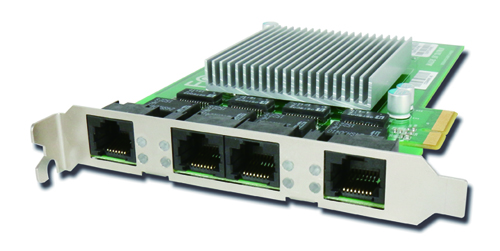

Medical Grade Isolation LAN card
Detail
-Intel® i350 chipset
-Medical Isolation according to IEC60601‐1
-4 Tx and Rx Queues (per port)
-1 Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab
-PHY specifications compliant
-Network isolator : RJ45 in/out dielectric strength: 4 kV, IEC 60601‐1
-Jumbo Frames Support for packets up to 9.5 KB
-IEEE802.3az ‐ Energy Efficient Ethernet (EEE)
-TCP/UDP/IP stateless offload
