Home / Actuator for Industrial Automation
Ref.Number: LD3

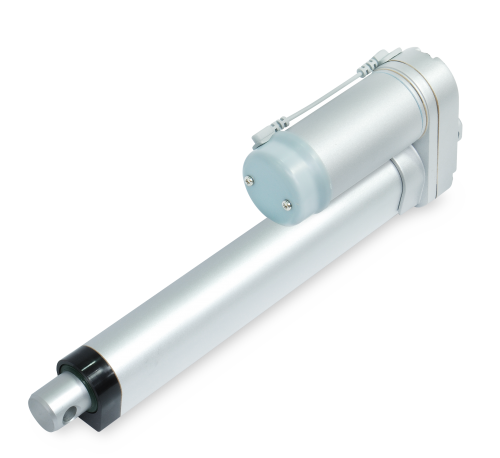

Actuator for Industrial Automation
Detail
LD3 features its compact design, which is suitable for various applications that require limited installation space, such as window opener and adjustable car driver seat.

Main applications：Industrial, home care and furniture
Input voltage：24V DC / 12V DC
Max. load：1200N (push/pull)
Max. current：3.5 A @ 12V DC
Max. speed：44 mm/sec @ no load
Stroke：50~300 mm (other strokes are available)
Duty cycle：25% or 1 min continuous operation in 4 min.
IP protection level：IP54
Color：Aluminum grey
Certified：EN 55014-1, EN55014-2
Noise level：≦70dB
Preset limit switches
