Home / Actuator for Home Care Application
Ref.Number: MD7

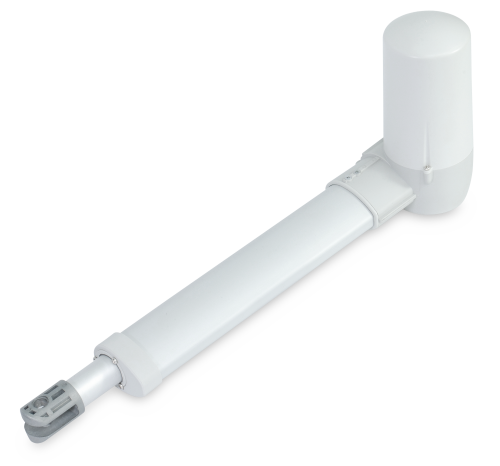

Actuator for Home Care Application
Detail
MD7 is a quiet and powerful actuator designed for medical and homecare application. Our MD7C and CB2P control boxes, which are designed to be perfectly attached and integrated to MD7, are available for customers to choose.

Main applications：Medical and homecare
Input voltage：24V DC / 12V DC
Max. load：6000N (push) / 4000N (pull)
Max. current：3A @ 24V DC, 6A @ 12V DC
Max. speed at no load：16.6mm/sec
Max. speed at full load：2.9mm/sec @ 6000N
Stroke：50 ~ 300 mm
Duty cycle：10% or 2 min continuous operation in 20 min.
IP Protection level：IP54
Color：RAL 7035
Certified：EN60601-1-2
Noise level：≦ 50dB
Preset limit switches
