Ref.Number: MD60

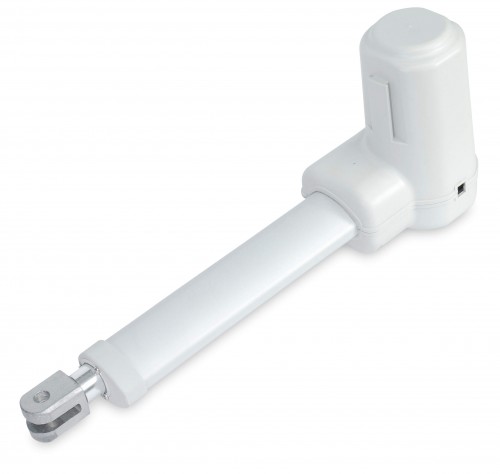

Actuator for Home Care Application
Detail
MD60 is a quiet and powerful actuator designed for use in a variety of medical and home care applications such as patient hoist and bed.

Main applications：home care and medical
Input voltage：24V DC
Max. load：6000N (push) / 4000N (pull)
Max. current：4.9 A@24V
Max. speed at no load：22.3 mm/sec
Max. speed at full load：5.0 mm/sec @ 6000N
Stroke：60 ~ 400mm
Duty cycle：10% or 2 min. continuous operation in 20 min.
IP protection level：IPX4
Color：RAL 7035
Certified：EN60601-1-2 / IEC 61000-4-2 / IEC 61000-4-3 / IEC 61000-4-8
Noise level：＜53 dB
Ambient operating temperature：+5° ~ 40°C
Preset limit switches
Aluminum outer tubes
Steel extension tube
Rear connector’s pivot direction can be chosen in every 30 degrees
