Ref.Number: MD100

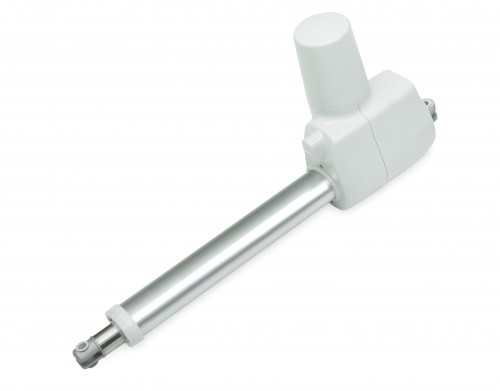

Actuator for Medical Application
Detail
MD100 is quiet and powerful actuator designed for variety of medical and home care applications such as patient lift and medical bed.

Main applications：medical and home care
Input voltage：24V DC
Max. load：10000N (push) / 6000N (pull)
Max. current：8.2 A @ 24V DC
Max. speed：9 mm/s @ no load
Stroke：100 ~ 600mm
Duty cycle：10% or 2 min. continuous operation in 20 min.
IP protection level：IPX4
Color：Light Gray(RAL 7035)
Certified：EN60601-1-2
Noise level：≦ 52dB
Preset limit switches
Stainless extension tube
Aluminum outer tube
Working environment temperature：+5~40℃
