Ref.Number: ID10

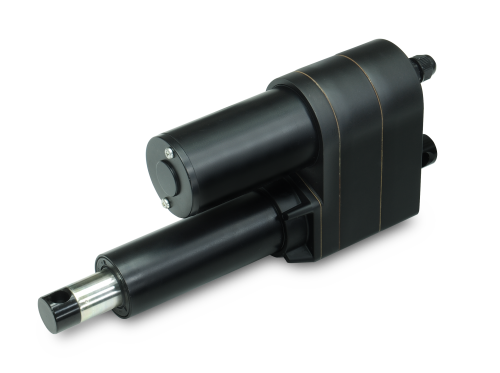

Actuator for Industrial Automation
Detail
ID10 features its heavy load capability and high speed design, which is suitable for various industrial applications requiring rapid movement, such as agricultural and construction machine. The adjustable limit cam is equipped for users to fine-tune the stroke based on their needs. Ball screw or ACME screw threaded spindle is available for users to choose.

Main applications：Industrial
Input voltage：24V DC / 12V DC
Max. load：3,500N (ACME), 7,000N (Ball screw)
Static load：4,500N (ACME), 13,600N (Ball screw)
Max. current：26.4 A @ 12V DC
Max. speed：67.1 mm/sec @ no load
Stroke：102~610 mm
Duty cycle：25% or 4 min. continuous operation in 16 min.
IP protection level：IP54
Color：Black
Certified：RoHS、EN61000-6-1、EN61000-6-3
Overload protection by clutch
Power wire length：250mm (with tinned wires)
