Home / Actuator for Furniture
Ref.Number: FD60

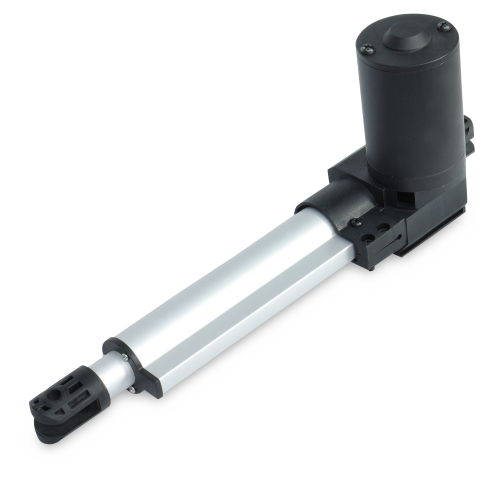

Actuator for Furniture
Detail
FD60 is a quiet and powerful actuator designed for use in furniture application. Our T control box, which can be perfectly attached and integrated to FD60, is available for customers to choose.

Main applications：Furniture
Inputvoltage：24V DC / 12V DC
Max.load：6000N (push) / 4000N (pull)
Max.current：6A @ 12V DC, 3A @ 24V DC
Max.speed at no load：33.3 mm/sec
Max.speed at full load：2.9 mm/sec @ 6000N
Stroke：50~ 300 mm
Dutycycle：10% or 2 min continuous operation in 20 min.
IPProtection level：IP42
Color：Black
Certified：EN55014-1
NoiseLevel：≦ 50dB
Presetlimit switches
