Home / Hospital Related / Transport ambulance ventilator
Ref.Number: SD-H3000C
Transport ambulance ventilator
Detail

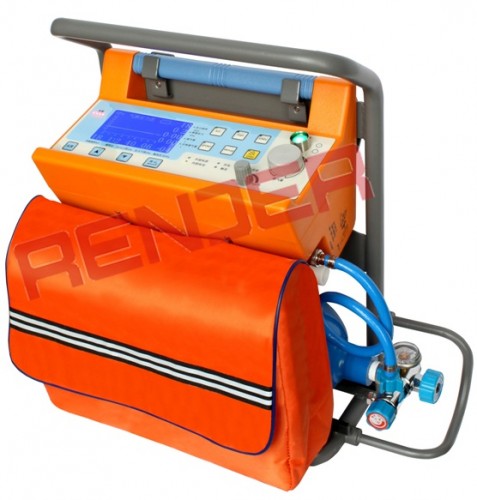

SD-H3000C transport ventilator
Ventilator main unit:
5” TFT LCD monitor;
Application: Adult, Pediatric (not for Neonatus);
Driven mode: Pneumatically driven electric controlled;
Vent. mode：A/C、SIGH、SIMV、SPONT、Manual;
Tidal volume: 0～1500mL;
Frequency: 6～60bpm;
I:E: 2:1～1:4 (totally 6 shifts);
Oxygen concentration: 48%～100%;
Trigger pressure: -2～0KPa;
Alarm Mute: ≤120s;
Press high limitation:2～6KPa;
Press low limitation:0～2KPa;
PEEP: 0.5～2KPa,(Optional);
Power supply:AC100～240V±10%, 50/60Hz±1%
Parameters monitoring:
Tidal volume、Minute volume、Total respiratory frequency、Peak pressure、airway pressure wave、
trigger indication、AC power indication、DC power indication、Charge indication etc.
Alarm parameters:
Airway press high limitation、Airway press low limitation、Apnea alarm、low tidal volume、low gas source、low power source etc.
