Ref.Number: ATW40

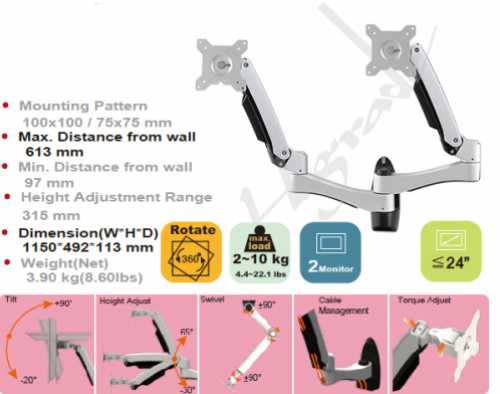

Ergonomic Monitor Wall Mount
Detail
Mounting Pattern....................100x100mm/75x75mm
Screw Type..........................M4
Material............................Steel/Aluminum Alloy/Plastic
Dimension(W*H*D)....................1150*492*113 mm
Weight(Net).........................3.90 kg (8.60 Ibs)
Swivel(Hinge).......................+/-90°
Tilt(Hinge).........................+90° / -20°
Tilt(Arm)...........................+65° / -30°
Support Max. Weight.................2~10 Kg ( 4.4~22.1 lbs )
Support Flat Panel Size.............≦24''
Max. Distance To The Wall...........613 mm
Min. Distance To The Wall...........97 mm
Rotate(Pivot).......................360°
Extended Arm Provided...............4
Height Adjustment Range(Hinge)......315 mm
