Home / Hospital Related / SUCTION UNIT
Ref.Number: SSA01-A00, SSB01-A00

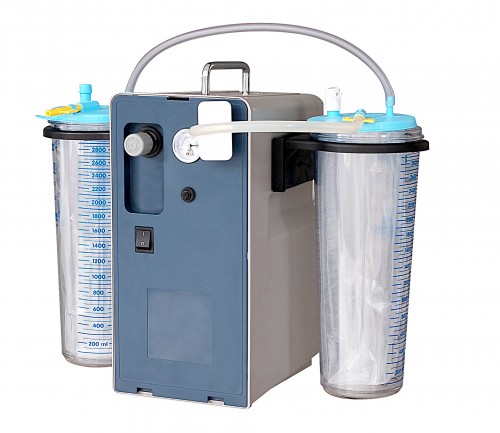

SUCTION UNIT
Detail
SPECIFICATIONS
Electrical Requirements 110V/60Hz, 230V/50Hz, 220V/60Hz
Maximum Vacuum -866 mBar/-650 mmHg
Flow Range 45LPM
Sound Level ＜50 dBa
Vacuum Pump Type: Piston
Bacteria Filter Pore Size 0.45 Micorn
Collection Bottle Capacity 3000ml * 2PCS
Operating Temperature 32°F~104°F (0°~40 °C)
Operating Humidity 95%RH
Operating Atmospheric 10.2~15.4psi (70~106kPa)
Storage Temperature 14°F~158°F (-10°C~70 °C)
Storage Humidity 95%RH
Storage Atmospheric Pressure 7.5~15.4psi (50~106kPa)
Weight: 7.8kg/ 17 lbs
Size: L * W * H 11”*17-3/4”*15-3/4”
