Home / Hospital Related / Roll Stand
Ref.Number: IMS-002

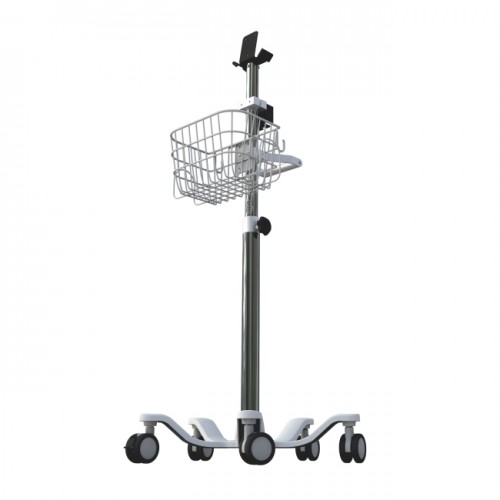

Roll Stand
Detail
•Height Options .................................... Adjustable at 27.36” ~ 47” (695mm ~ 1195mm)
Fixed at 42.9” (1090mm

•Instrument Mounting Options .............. Aluminum Tilting Adjustment with Removable Plate
Fixed Angle ( Vertical or Flat)

•Weight Capacity ................................. Up to 22 lbs (10 kgs)

•Tube Material Options ....................... Chrome Plated Steel/ Stainless Steel/ Aluminum.

•Tube Diameter .................................. Upper 1.25”+ Bottom1.5”/ Upper 1.5”+ Bottom 2”

•Aluminum Base Options ................... 5 legs low centre point of gravity

•Counter Weight Options .................... 7.72 lbs (3.5 kgs) / 15.76 lbs (7.15 kgs)

•Twin-Wheel Casters ......................... 3” (75mm), 2 with Brakes
